Rusty Nail Design Co

Large CNC Bit Organizer Tray

Large CNC Bit Organizer Tray

Regular price $2.50 USD
Regular price Sale price $2.50 USD
Sale Coming Soon
Shipping calculated at checkout.

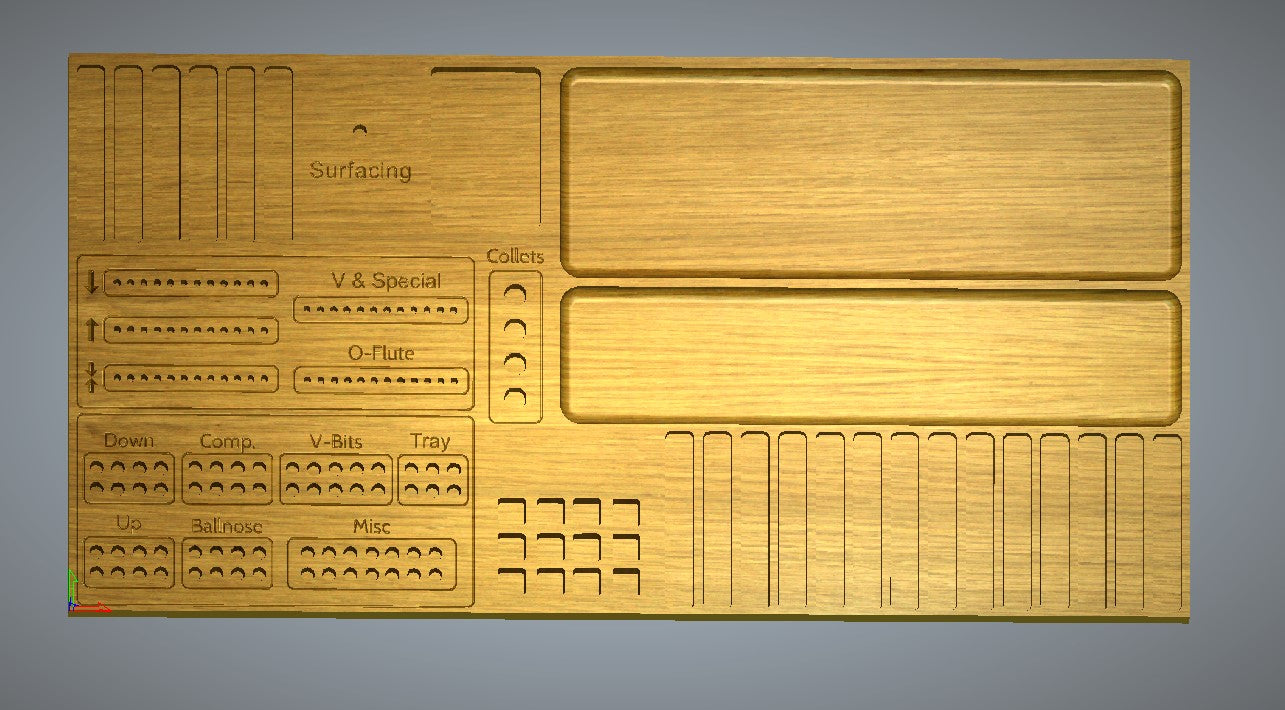

This file will make your very own CNC bit organizer. This is larger than the other organizer I have in my store. I sized this to fit the top drawer of my Husky Tools 26" tool chest. Finished dimensions are 21.75 x 11 using 3/4" material. SVG and DXF files are included.

Space for 123 blocks, a surfacing bit, plenty of 1/8 and 1/4 shank endmills, tons of places for endmills in storage boxes.

Bits required:
3/4" diameter bowl and tray bit (I used whiteside 1372, you could use a 1/4" endmill too)
90 deg V-bit
1/4" Endmill (up or down cut, also optional, you could use the 1/8 bit, but it would take longer to cut)
1/8" Up-cut endmill
